PRODUCT >> GPS METER

GPS METER

Description

Electronic GPS/GPRS meter is the new innovation from “Superb Meter Mfg. co.”. This unit is ready with all the future requirements of GPS/GSM and thermal printer. The quality of hardware ensures there would be minimum maintenance required.

Specification

  • Operating Supply Voltage : 9V DC to 18V DC Surge to 50V
  • Reverse polarity protection Provided Current with meter operating : 120mA typical at 12V DC
  • RAM Data Protection : Typically about 10 years(memory retention via lithium cell)
  • Printer Supply : 9V DC to 18V DC,2Amp
  • Roof Lamp Drive : 5Amp at 12V DC, Reverse polarity protection

Printer

  • Long life:50 Km
  • Maximum Current : 2A
  • No Of Dots/Line : 384
  • Print Width : 48mm
  • Print Speed : 90mm/sec
  • Operating Voltage :4.8V to 8.5V
  • Resolution : 8 dots/mm

LCD Display

  • LCD Backlight 128 X 64 pixels graphic Display
  • White character with Blue background is defined for distance vision and good aesthetic looks.
  • Displays Fare, Distance and Waiting time in large Fonts.
  • Display Indicates Current date and Real time on the Top line right corner.
  • Display Indicates GPRS Signal Strength, GPS Connectivity, Battery Life on top line.
  • Built in DC to DC circuit.
  • Wide temperature range-(-20C to +70 C)

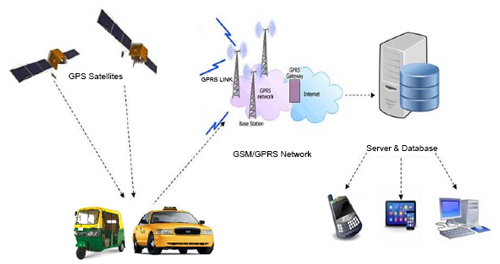

Superb Meter-GPS Description

Features

  • Superior design & priced for the smallest budget.
  • Very bright display for Fare, Kilometer & Time
  • High speed thermal printer.
  • Uses large,bright,easy to read LCD display for easy viewing.
  • 2” Thermal printing for FARE receipt.
  • GPS/ GPRS communication.
  • Serial port for external interface.
  • Roof light Control.
  • Low power consumption.
  • Buzzer operation.
  • Auto triggering between tariffs based on Time, Kilometer, Fare.
  • Economical,save you the most money.
  • Easily changes to hired mode with push of a button.
  • Shipped with mounting bracket & wiring harness.
  • Statistics of Cumulative collection
  • Tamperproof
  • Real-time clock.
  • Internal memory backup.
  • Each meter can be given its own electronic serial number.
